ATEM box setup
Connections

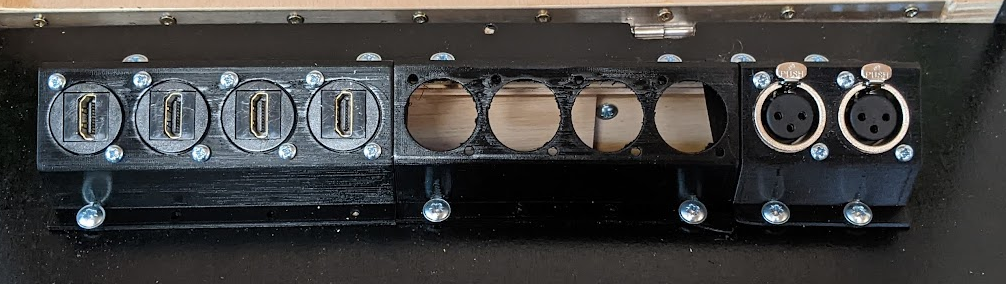

Nearly all* the connections for the ATEM are on the angled panel in the centre of the Streaming Box
| HDMI 1 | HDMI 2 | HDMI 3 | HDMI 4 | LAN 1 | LAN 2 | LAN 3 | LAN 4 | XLR 1 | XLR 2 |
|---|---|---|---|---|---|---|---|---|---|
| Camera | Laptop | Spare | Monitor Output | Do Not Use | School (In) | Main Laptop | Simon Laptop | From Stage L | From Stage R |

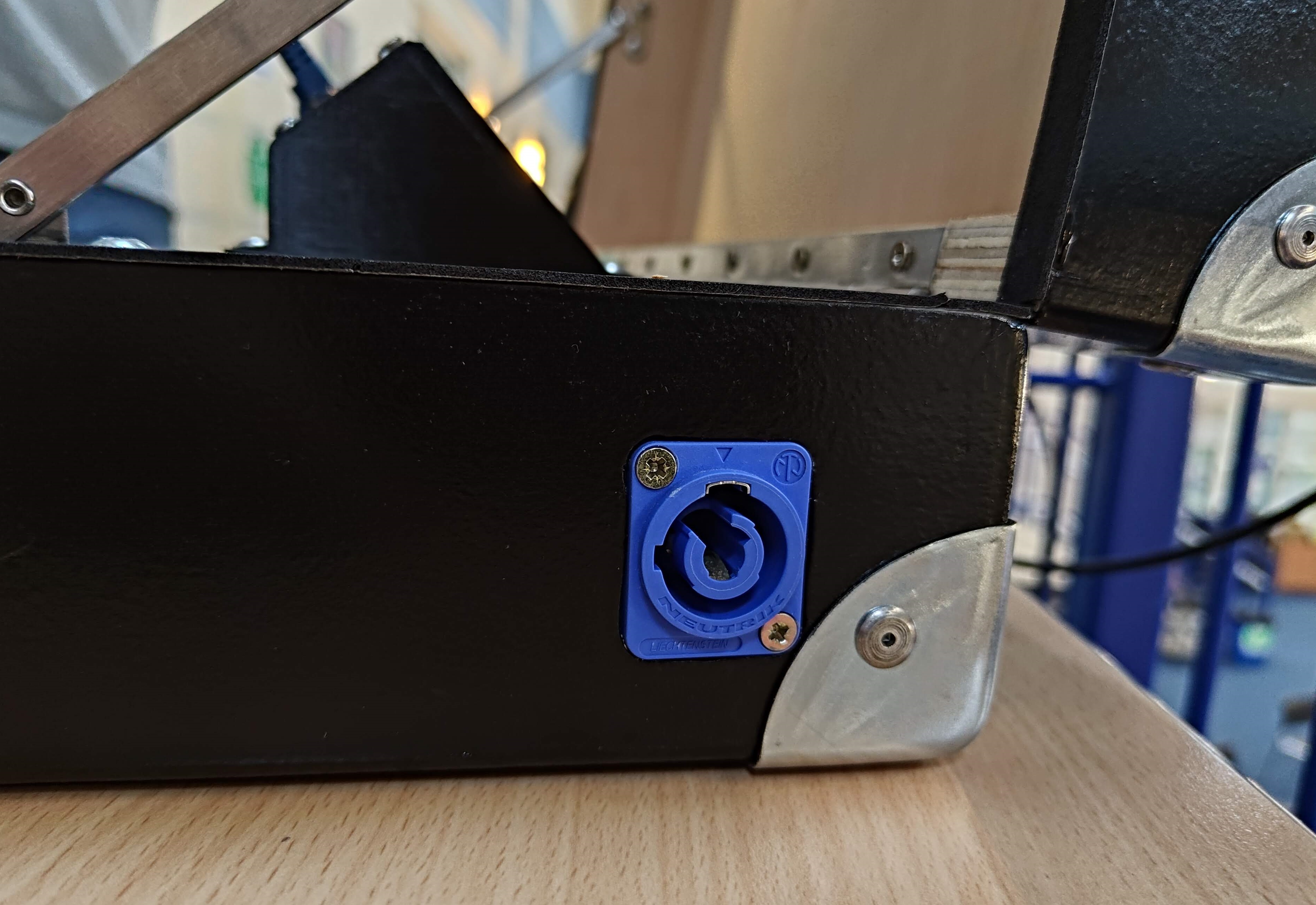

*The blue power connector inserts and twists to lock. It is mounted on the right outer side of the box

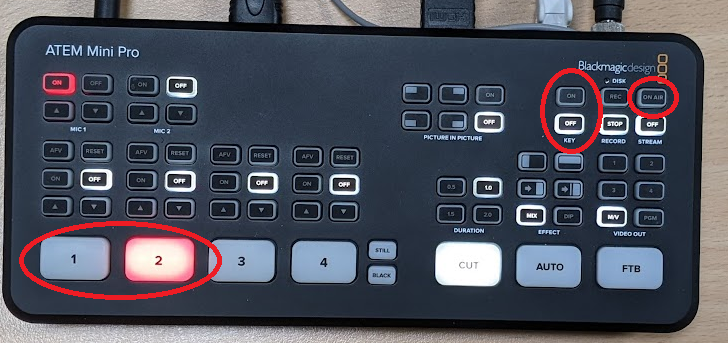

ATEM Buttons
Bottom Row
The bottom row of buttons (1-4) selects the input. We just use 1 and 2.
- Pre Service: 2 (to show slides from laptop)
- End of Countdown: 1 (to show camera)
- Service: Leave on 1
- End of service: 2 (end of service slides, opportunity to setup camera for prayer)
Top Right
The Top right has the STREAM "ON AIR" and "OFF" buttons that starts the stream and the KEY "ON" and "OFF" buttons
- STREAM ON AIR/ OFF : Starts/ stops the stream
- KEY ON/OFF : Enables 'key' overlay of laptop over camera (for lyrics during worship)
